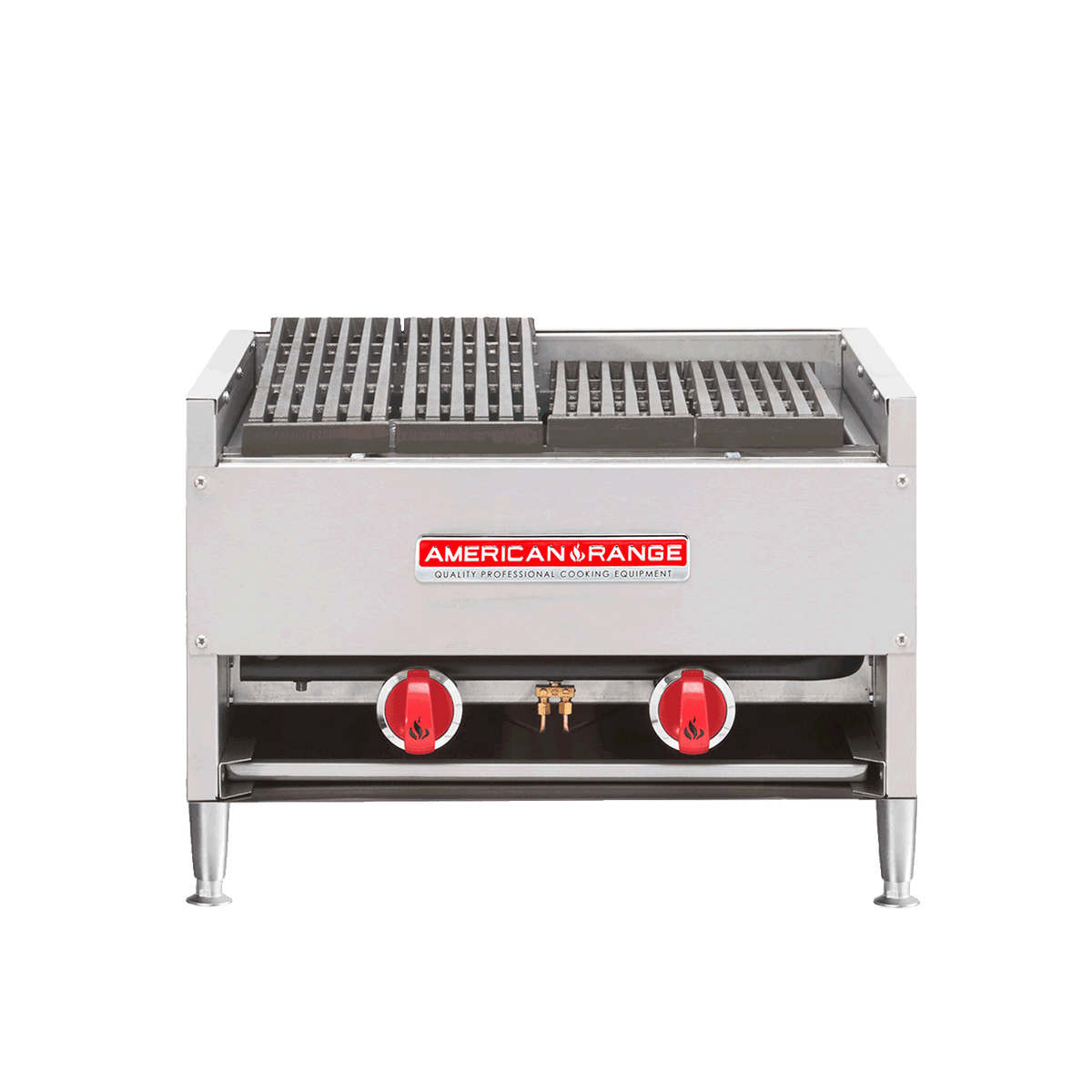

American Range AECB-24 24" Countertop Char-Rock Gas Charbroiler, Lava Rock, 70,000 BTU

The American Range AECB-24 is a 24-inch countertop char-rock charbroiler that cooks over natural volcanic lava rock. Two individually controlled 35,000 BTU/hr cast-iron "H" burners (70,000 BTU/hr total) heat the rock bed; drippings hit the hot rock and flare into searing flame and smoke for true char-broiled flavor. It runs on natural gas or liquid propane; select the gas type above.

Lava Rock Char-Broiling

Lava rock spreads burner heat evenly beneath the grates and turns drippings into flavorful smoke. Heavy-duty reversible cast-iron 5" x 21" top grates leave attractive marks and can be set flat or sloped to move grease forward.

Why Operators Choose It

• True char flavor: Natural lava rock bed.
• Heavy burners: 2 x 35,000 BTU/hr cast-iron "H" burners, individually controlled.
• Adjustable grates: Reversible cast-iron grates, flat or sloped.
• Durable: Stainless steel exterior; made in the USA.

Controls

Individual manual valve for each burner.

Ideal For

Steakhouses, grills, bars and Latin or Mediterranean kitchens that want smoky char-grilled flavor.

Specifications

Installation & Utility Requirements

Connect to the gas supply with the inlet size shown above. Manifold pressure is 5.0" W.C. on natural gas and 10.0" W.C. on propane (the countertop griddles use 4.0" W.C. on natural gas through the supplied regulator, which must be installed). Specify the gas type, and the altitude if above 2,000 feet; have a qualified technician make the connection and check pressures at start-up.

For use only on non-combustible floors and counters, on legs or casters (or with a 2-inch overhang when curb mounted). Clearance from non-combustible walls is 0 inches; next to combustible walls keep at least 12 inches at the sides and 4 inches at the rear. Radiant/char broilers are for non-combustible locations only. Install under a ventilation hood per NFPA 96 and local codes. If the unit sits on a stand with casters, use a flexible gas connector with a restraining device.

What's Included

• American Range AECB-24 charbroiler, set up for the gas type ordered
• Lava rock
• 4" adjustable legs

Factory Options & Accessories (Additional Cost)

• Stainless steel equipment stand

Warranty

Two-year limited parts and labor warranty from American Range.

Specifications per American Range data; subject to change by the manufacturer.
