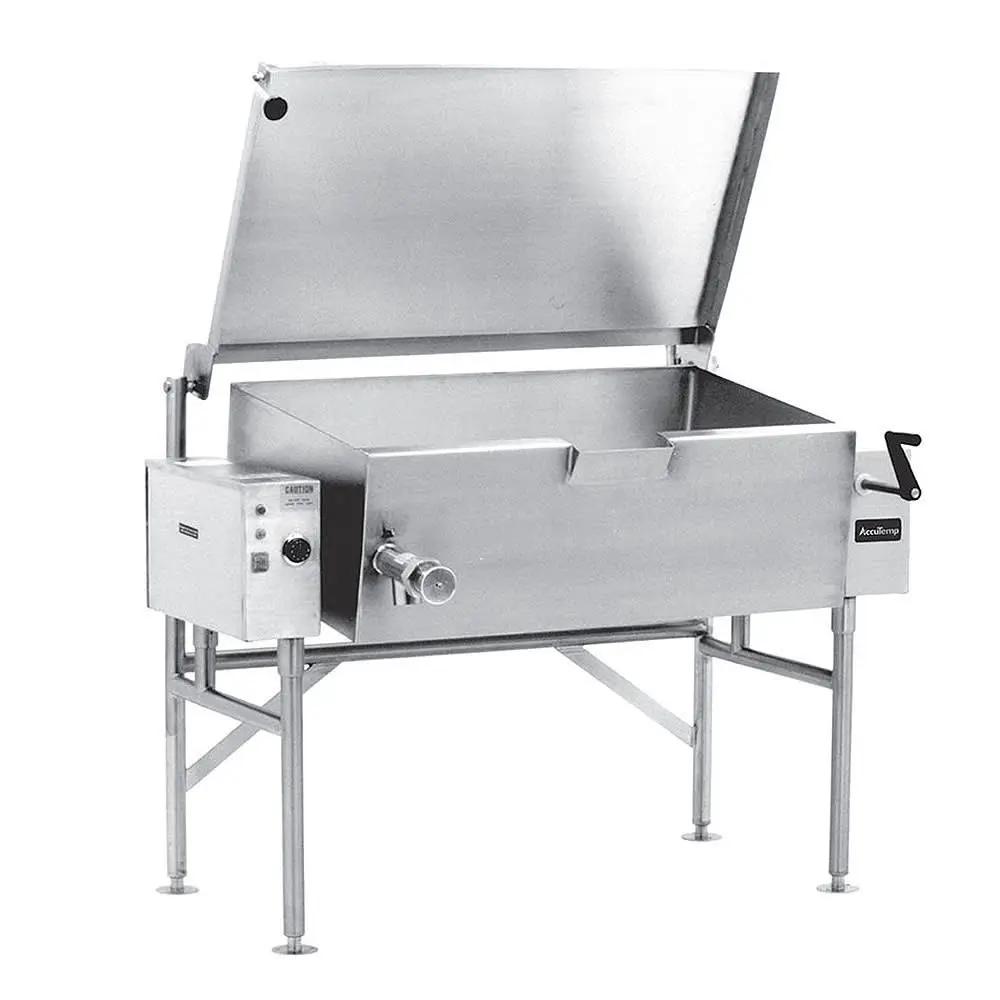

AccuTemp ALTES-40 Tilt Skillet 40 Gal Open Base 240V 3Ph

AccuTemp Edge Series ALTES-40, 40-gallon electric tilting skillet (open base) with spring-assisted lid and manual crank tilt. Thermostatically controlled surface from 175°F to 400°F; 240 V, 3-phase, 60 Hz; 17.7 kW total load (42.7 A).

304 stainless steel construction on key surfaces; field-replaceable heating elements; rear vent and full-width condensate drip shield; adjustable legs with bullet feet; self-locking tilt (>90°).  Pan: 41" L × 25 1/8" W × 9" D; overall footprint: 56 1/10" W × 36 3/8" D × 38 3/4" H (67 1/4" H with lid raised); weight ≈ 595 lb.

Specs

• Manufacturer: AccuTemp
• Model: ALTES-40
• Series: Edge Series
• Base: Open
• Capacity: 40 gallons
• Heat: Electric
• Voltage: 240 V
• Hertz: 60 Hz
• Phase: 3
• Tilt Mechanism: Manual crank; self-locking; rotates >90°
• Type: Floor Model Tilting Skillet
• Temperature range: 175–400°F
• Heating elements: Field-replaceable
• Controls: Thermostatic controls
• Construction: 304 stainless steel (pan, lid, controls, frame); water-resistant console
• Vent: Rear full-width steam vent
• Drip shield: Full-width condensate shield
• Legs: Open base on 1 5/8" diameter tubular legs; adjustable bullet feet
• Pan dimensions: 41" L × 25 1/8" W × 9" D
• Overall dimensions: 56 1/10" W × 36 3/8" D × 38 3/4" H (67 1/4" H with lid raised)
• Weight: 595 lb
• Certifications: UL, NSF
• Warranty: 1 year parts & labor; lifetime service & support

Features

• Open base design for easy cleaning and drainage access.
• Manual tilt with self-locking worm gear; tilt >90° for controlled pouring and easy loading.
• Spring-assisted, hinged lid with vent (lid options vary by model); safety handles on the cover.
• Full-width condensate drip shield to reduce maintenance and splash.
• Rear steam vent maintains process visibility and moisture management during cooking.
• Heavy-duty construction with 304 stainless steel on critical components; 1 5/8" tubular legs with adjustable bullet feet.
• Field-replaceable heating elements simplify in-field service and uptime.
• Thermostatic controls with high-limit protection for element longevity.

Compatibility

• Electrical: 240 V, 60 Hz, 3-phase; 17.7 kW total load; 42.7 A typical draw.
• Designed for UL and NSF-listed commercial kitchens; intended for floor-mounted installations in heavy-use environments.
• Part of AccuTemp Edge Series tilting skillets; compatible with 30–40 gallon capacity lineup for mixed-volume operations.
• Open-base design facilitates cleaning and integration with standard drainage and utility layouts.

Physical

• Pan: 41" L × 25 1/8" W × 9" D; pan body is 304 stainless steel.
• Overall: 56 1/10" W × 36 3/8" D × 38 3/4" H; lid raised height about 67 1/4".
• Weight: Approximately 595 lb.
• Base and frame: Open base; 1 5/8" diameter tubular legs; adjustable bullet feet for level mounting.
• Lid: Spring-assisted hinged cover with safety handles; rear venting and lip-related features vary by revision.

Certifications

• UL listed
• NSF certified

Warranty

• 1-year parts and labor; lifetime service and support guarantee
