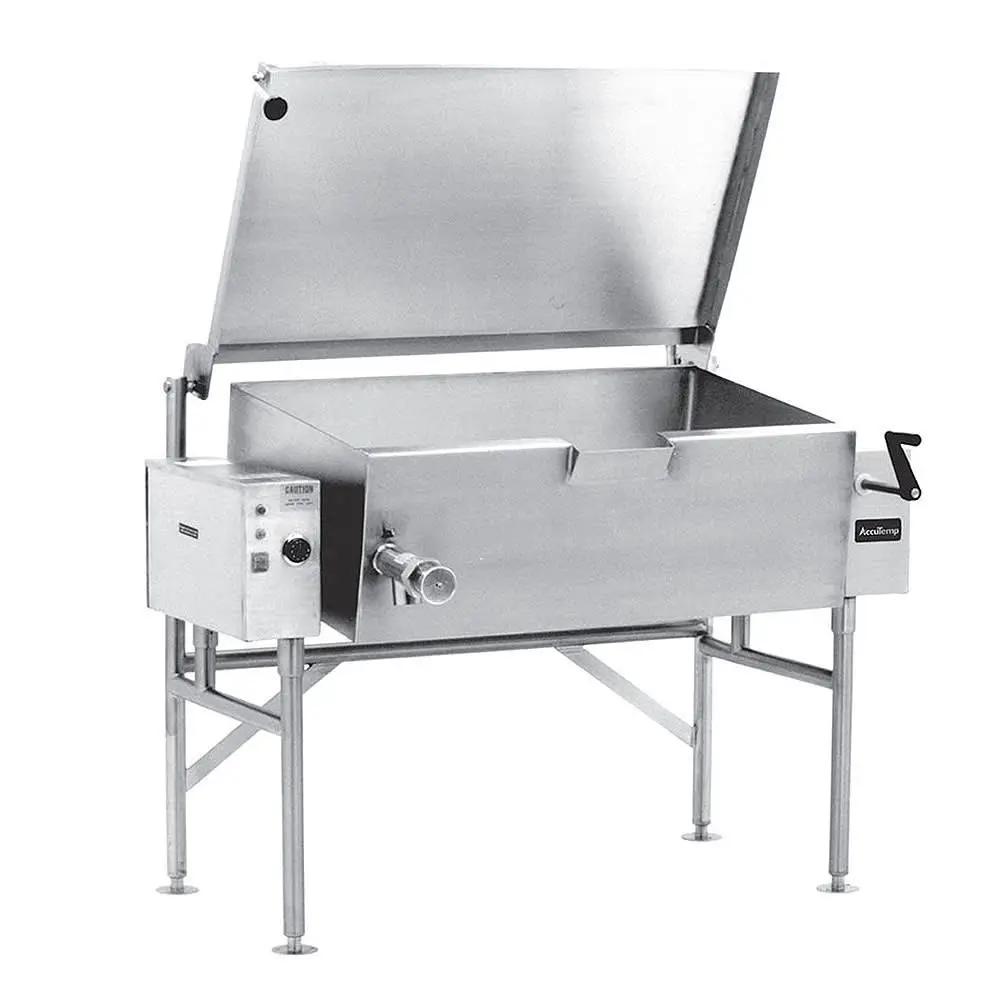

AccuTemp ALTES-40 Tilt Skillet 40 Gal Open Base Spring Lid, 240v, 1 Phase

AccuTemp Edge Series ALTES-40 tilting skillet, 40-gallon capacity, electric heat, 240 V / 1-phase. Open-base design with self-locking tilt mechanism (>90°) for grease runoff and easy emptying.

Constructed from 304 stainless steel for the frame, lid, handle, and cooking surface; spring-assisted/actuator-supported lid with safety handles. Thermostatic controls with a 175–400°F range; high-limit safety; field-replaceable heating elements.

Rear full-width steam vent, condensate drip shield, and adjustable 1-5/8" diameter legs with bullet feet. UL and NSF listed; includes 1-year parts & labor warranty with lifetime service & support guarantee.

Specs

• Manufacturer: AccuTemp
• Series: Edge Series
• Model: ALTES-40
• Base: Open
• Capacity: 40 gallons
• Heat: Electric
• Voltage: 240 V
• Hz: 60
• Phase: 1
• Tilt mechanism: Crank (self-locking, rotates >90°)
• Product: Tilting Skillet
• Product Type: Cooking Equipment
• Pan dimensions: 41 in. L × 25 1/8 in. W × 9 in. D
• Overall dimensions: 56 1/10 in. W × 36 3/8 in. D × 38 3/4 in. H (67 1/4 in. H with lid raised)
• Pan weight: (not specified in provided data)
• Power and current: 17.7 kW, 73.9 A
• Construction materials: 304 stainless steel (frame, lid, handle, cooking surface); 304 stainless thermostatic controls
• Warranty: 1-year Parts & Labor; Lifetime Service & Support Guarantee

Features

• Tilting mechanism self-locks and rotates more than 90 degrees for efficient grease runoff and emptying.
• Heavy-duty, actuator-supported lid with safety handles; spring-assisted operation.
• Rear-located, full-width steam vent for moisture control.
• Condensate drip shield reduces maintenance needs.
• Thermostatic controls built with 304 stainless steel for water resistance.
• Field-replaceable heating elements for in-field serviceability.
• Open-base design on adjustable legs for configurable working height.

Compatibility

• Electrical supply: 240 V, 60 Hz, 1-phase.
• Pan compatibility: ALTES-40 40-gallon pan; designed as part of the AccuTemp Edge Series tilting skillets.
• Compatible accessories and add-ons are those designed for Edge Series tilting skillets and 40-gallon pans.
• Open-base configuration requires appropriate floor space and clearance for tilt and drainage.

Physical

• Construction: 304 stainless steel tubular frame, lid, handle, and cooking surface.
• Base: Open; legs are 1 5/8" diameter with adjustable bullet feet.
• Pan: 41" L × 25 1/8" W × 9" D
• Overall: 56 1/10" W × 36 3/8" D × 38 3/4" H (67 1/4" H with lid raised)
• Weight: 595 lb

Certifications

• UL listed
• NSF listed

Warranty

• 1-year parts and labor
• Lifetime service and support guarantee
