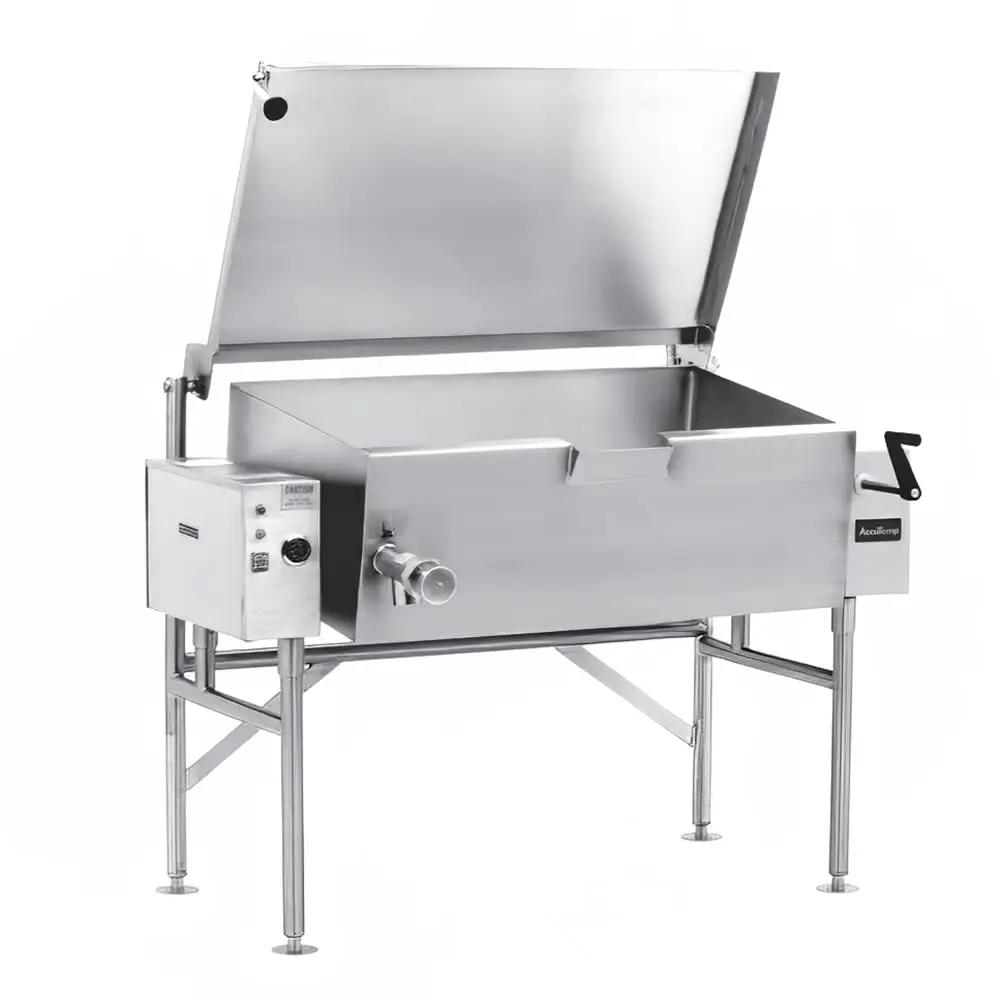

AccuTemp ALTES-40 Tilt Skillet Open Base 40 Gal 208V, 3 Phase

AccuTemp ALTES-40 is a 40-gallon electric tilting skillet with an open base, 208 V/3-phase supply, and a 175–400°F thermostatic range. Constructed from 304 stainless steel, it features a self-locking tilt mechanism (>90°), a spring-assisted lid, and field-replaceable heating elements for on-site service. The open-base design supports frying, simmering, and steaming, with a steam vent and condensate shield to manage moisture and grease runoff. Adjustable legs with bullet feet provide leveling on varied installations.

Specs

Features

• 40-gallon capacity for batch cooking and high-volume output
• Open base design for easy access and drainage
• Self-locking manual tilting mechanism with crank control
• Tilts more than 90° to facilitate grease runoff and pouring
• Thermostatic controls with a water-resistant console
• High-limit safety system to reduce overheating risk
• 304 stainless steel construction across frame, lid, handle, console, and cooking surface
• Heavy-duty cover with actuator-assisted counterbalance and safety handle
• Steam vent and condensate drip shield to manage moisture
• Field-replaceable heating elements for on-site servicing
• 1-5/8" diameter tubular legs with adjustable bullet feet for leveling

Compatibility

• Part of the AccuTemp Edge Series tilting skillets
• Designed for 208 V, 3-phase electrical systems with 50–60 Hz
• Open-base configuration compatible with standard Edge Series accessories and installation options

Physical

• Material: 304 stainless steel (frame, lid, handle, control console, cooking surface)
• Pan dimensions: 41 in. L × 25 1/8 in. W × 9 in. D
• Overall dimensions: 56 1/10 in. W × 36 3/8 in. D × 38 3/4 in. H (67 1/4 in. H with lid raised)
• Weight: 595 lb
• Tilt mechanism: Crank; self-locking
• Legs: Open base; 1-5/8 in. dia. tubular; adjustable bullet feet
• Ventilation/Drainage: Steam vent; condensate drip shield

Certifications

• UL listed
• NSF certified

Warranty

• 1-year parts and labor
• Lifetime service and support guarantee
