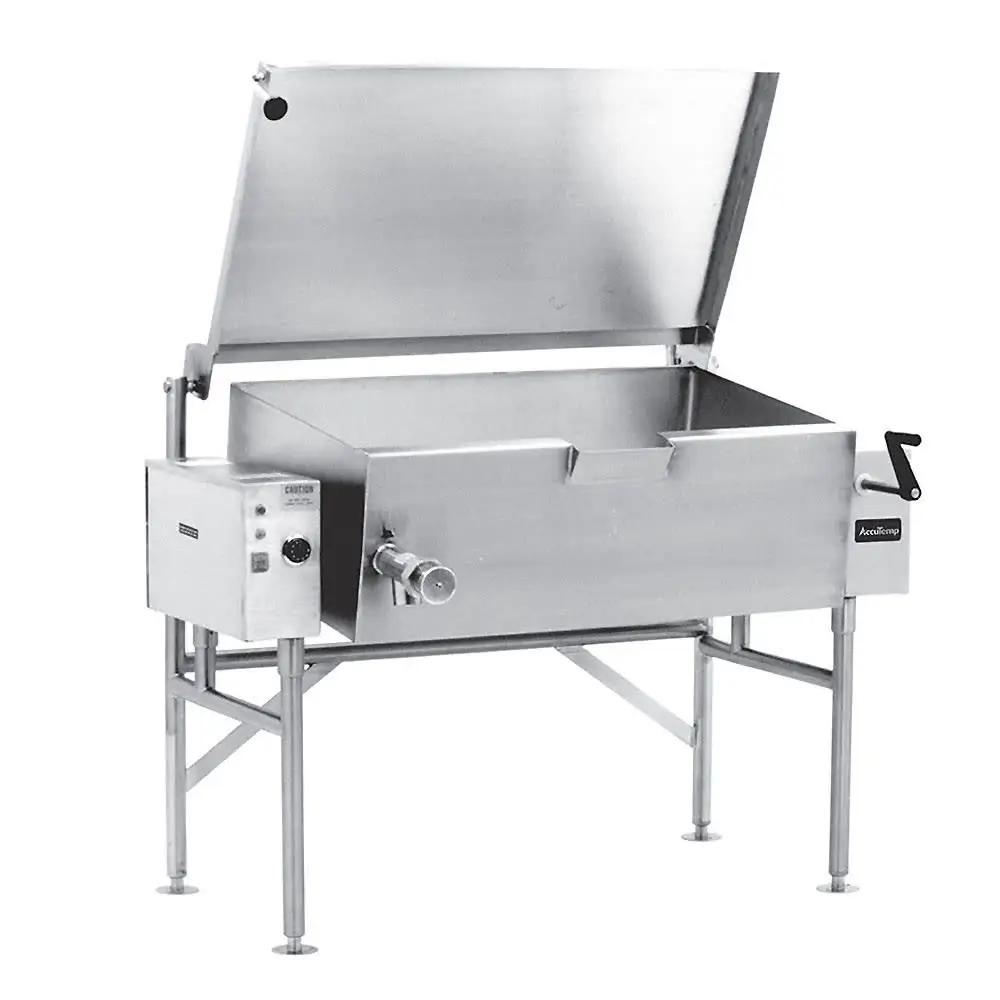

AccuTemp ALTES-40 40 Gal Tilt Skillet Open Base 208V 1 Phase

The AccuTemp ALTES-40 is a 40-gallon electric tilting skillet on an open tubular stand. It uses a manual tilt crank with a self-locking mechanism (>90°) and a actuator-assisted counterbalanced lid with a rear steam vent and condensate drip shield. The cooking surfaces, lid, handle, frame, and pan are 304 stainless steel; the control console is water-resistant. Heating elements are field-replaceable and thermostatic controls include a high-limit safety feature. Temperature range: 175–400°F.

Specs

• Manufacturer: AccuTemp
• Model: ALTES-40
• Base: Open
• Capacity: 40 gal
• Heat: Electric
• Voltage: 208 V
• Frequency: 60 Hz
• Phase: 1
• Product: Tilting Skillets
• Series: Edge Series™
• Tilt mechanism: Crank
• Type: Floor Model
• Pan dimensions: 41 in L × 25 1/8 in W × 9 in D
• Overall dimensions: 56 1/10 in W × 36 3/8 in D × 38 3/4 in H (67 1/4 in H with lid raised)
• Current draw: 76.9 A
• Power: 17.7 kW
• Construction materials: 304 stainless steel (pan, lid, handle, cooking surface, frame)
• Warranty (spec): 1-year Parts & Labor; Lifetime Service & Support (as specified by manufacturer)

Features

• Open base with 1 5/8 in tubular leg stand
• Adjustable bullet feet for level installation
• Manual tilt crank with self-locking mechanism (>90° tilt)
• Actuator-assisted counterbalanced lid for easy opening/closing
• Rear steam vent and condensate drip shield to reduce maintenance
• Field-replaceable heating elements
• 304 stainless steel construction across pan, lid, handle, and cooking surface
• Water-resistant 304 stainless steel control console

Compatibility

• Electrical requirements: 208 V, 50–60 Hz, single-phase
• Power rating: 17.7 kW; current ~76.9 A
• Designed for commercial kitchen use with 40-gallon tilting skillet capacity
• Open-base design supports straightforward cleaning and drainage access

Physical

• Pan: 41 in L × 25 1/8 in W × 9 in D
• Overall: 56 1/10 in W × 36 3/8 in D × 38 3/4 in H (67 1/4 in H with lid raised)
• Weight: 595 lb
• Materials: 304 stainless steel for pan, lid, handle, cooking surface, and frame
• Base: Open; Leg stand: 1 5/8 in tubular; Feet: Adjustable

Certifications

• UL
• NSF

Warranty

• 1-year Parts & Labor
• Lifetime Service & Support Guarantee
