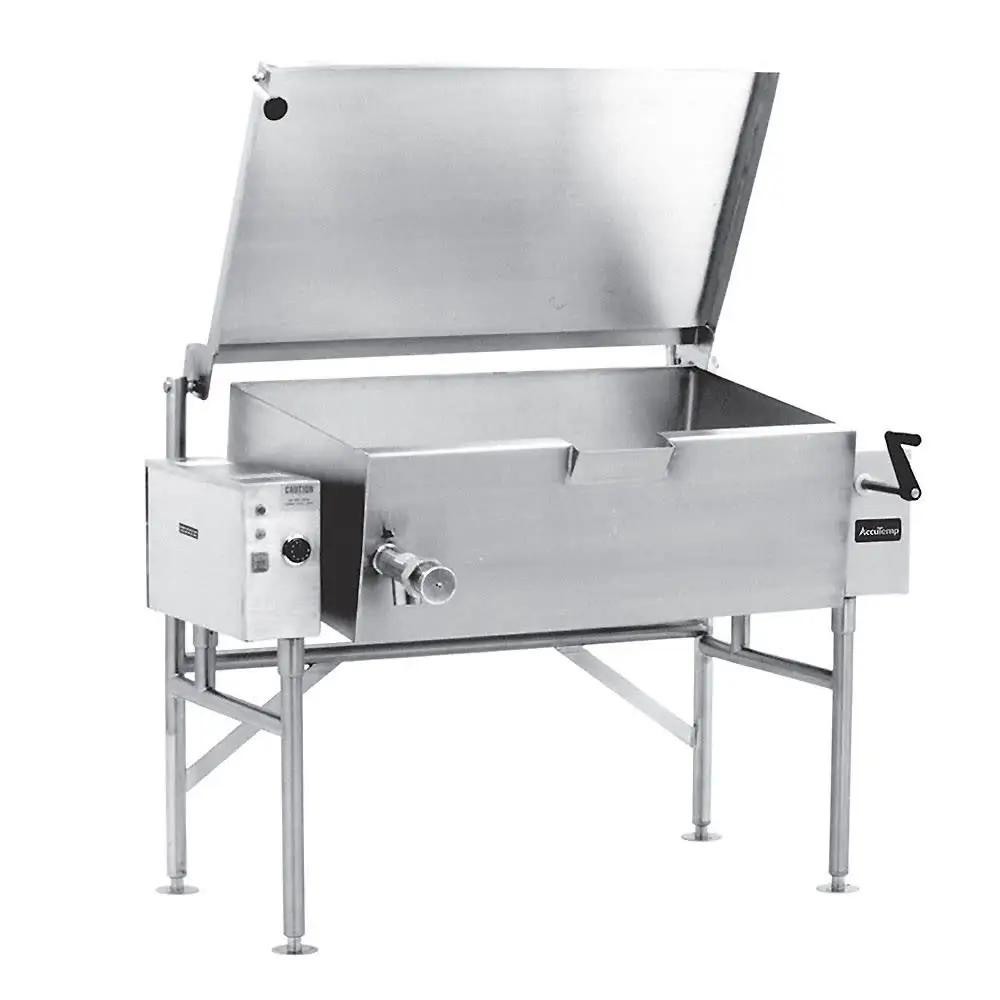

AccuTemp ALTES-30 Tilt Skillet 30 Gal 240V 3PH Open Base

AccuTemp Edge Series ALTES-30 tilting skillet, 30-gallon capacity, electric heat, open-base design. Manual crank tilt with actuator-assisted lid; 304 stainless steel construction throughout key components. Thermostatically controlled heating with high‑limit safety; temperature range 175–400°F; 240V, 3‑phase.

Specs

• Manufacturer: AccuTemp
• Model: ALTES-30
• Series: Edge Series
• Base: Open
• Capacity: 30 gallons
• Heat source: Electric
• Voltage: 240 V
• Frequency: 60 Hz
• Phase: 3
• Power: 11.8 kW
• Current: 28.4 A
• Temperature range: 175–400°F
• Tilt mechanism: Crank (manual)
• Product type: Tilting skillet
• Pan dimensions: 31 in L × 25 1/8 in W × 9 in D
• Overall dimensions: 46 1/10 in W × 36 3/8 in D × 38 3/4 in H (67 1/4 in H with cover raised)
• Weight: 490 lb
• Materials: 304 stainless steel (pan, frame, lid, control console, handle)
• Legs: 1-5/8 in tubular leg stand; adjustable bullet feet
• Heating elements: Field replaceable
• Certifications (listed): UL, NSF

Features

• Manual tilting with self-locking action; tilt > 90° for pouring and portioning
• Actuator-assisted cover with side safety handles
• Rear steam vent for venting during operation
• Condensate drip shield to reduce moisture on surrounding surfaces
• Thermostatic controls are water-resistant and include a high‑limit safety
• Field-replaceable heating elements for easier on-site service
• 304 stainless steel construction across key components for corrosion resistance
• Open-base design supports straightforward cleaning and drainage

Compatibility

• Electrical requirements: 240 V, 60 Hz, 3-phase
• Power draw: 11.8 kW; current ~28.4 A
• Construction supports standard 30-gallon tilting skillet applications in commercial kitchens
• UL/NSF-listed for compliance with food service applications

Physical

• Pan material: 304 stainless steel; open-base design
• Pan dimensions: 31 in L × 25 1/8 in W × 9 in D
• Overall dimensions: 46 1/10 in W × 36 3/8 in D × 38 3/4 in H
• Height with cover raised: 67 1/4 in
• Leg stand: 1-5/8 in tubular; adjustable bullet feet
• Weight: 490 lb

Certifications

• UL listed
• NSF listed

Warranty

• 1-year parts and labor
• Lifetime service and support guarantee
