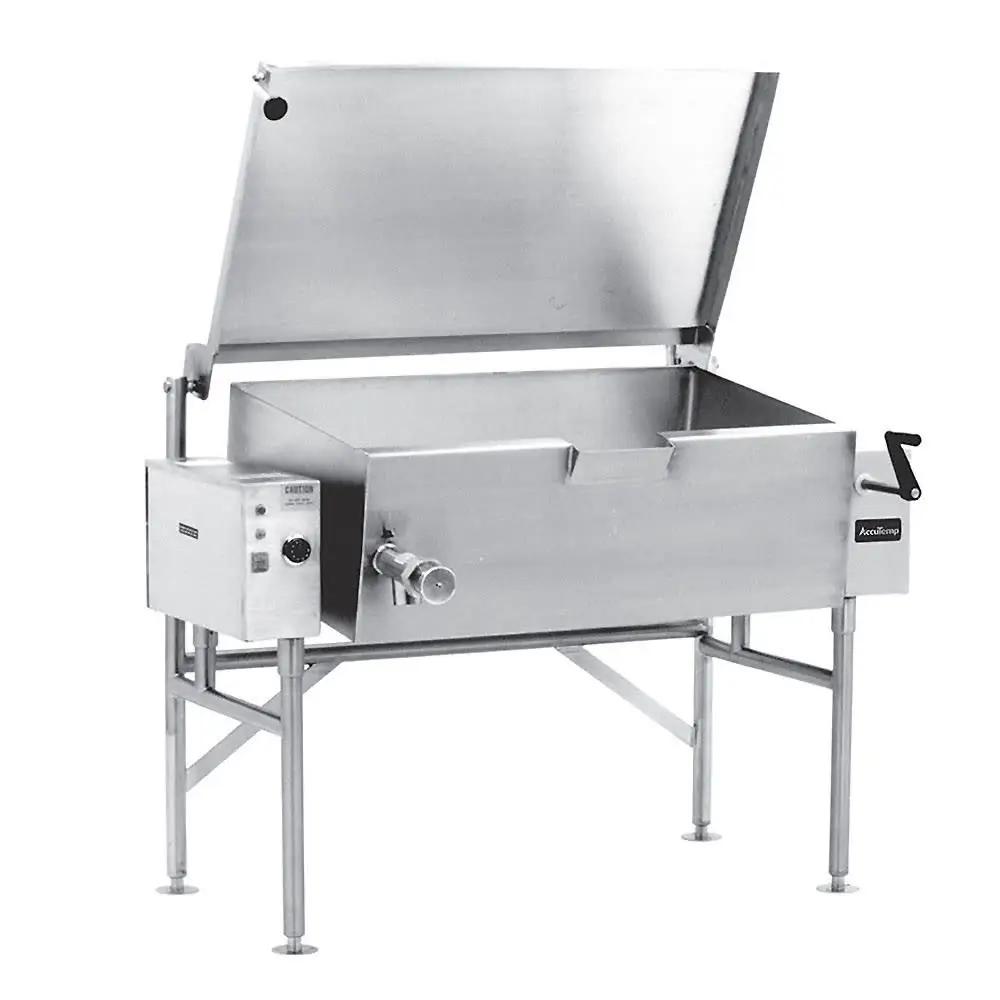

AccuTemp ALTES-30 30 Gallon Tilt Skillet Open Base Electric With Spring-Assist Lid 240V/1PH

AccuTemp ALTES-30 is a 30-gallon electric tilting skillet (Edge Series) with an open base, spring-assisted lid, and a self-locking tilt mechanism. It supports braising, frying, and other high-volume cooking tasks, featuring thermostatic controls (175–400°F), a water-resistant control console, field-replaceable heating elements, and a condensate drip shield for easier maintenance. All main surfaces are 304 stainless steel for durability and easier cleaning.

Specs

Features

• Thermostatic controls with adjustable range from 175 to 400°F
• Water-resistant control console
• High-limit safety to prevent overheating
• Field-replaceable heating elements
• Self-locking tilt mechanism with worm gear
• Tilt rotation beyond 90° for efficient pouring
• Actuator-assisted cover with a vent
• Safety handles mounted on both sides of the unit
• Condensate drip shield to reduce maintenance
• Construction: 304 stainless steel for pan, lid, control console, handles, and tubular frame

Compatibility

• Electrical supply: 240 V, 60 Hz, 1-phase; 11.8 kW (approx. 49.3 A)
• Open-base design suited for the 30-gallon Edge Series tilting skillet platform
• UL and NSF listed as part of Edge Series tilting skillets

Physical

• Pan dimensions: 31 in L × 25 1/8 in W × 9 in D
• Overall dimensions: 46 1/10 in W × 36 3/8 in D × 38 3/4 in H (67 1/4 in H with lid raised)
• Weight: 490 lb
• Material: 304 stainless steel (pan, lid, control console, handle, and tubular frame)
• Leg stand: 1 5/8-in diameter tubular legs with adjustable bullet feet
• Base: Open

Certifications

• UL listed
• NSF listed

Warranty

• 1-year parts and labor
• Lifetime service and support guarantee
