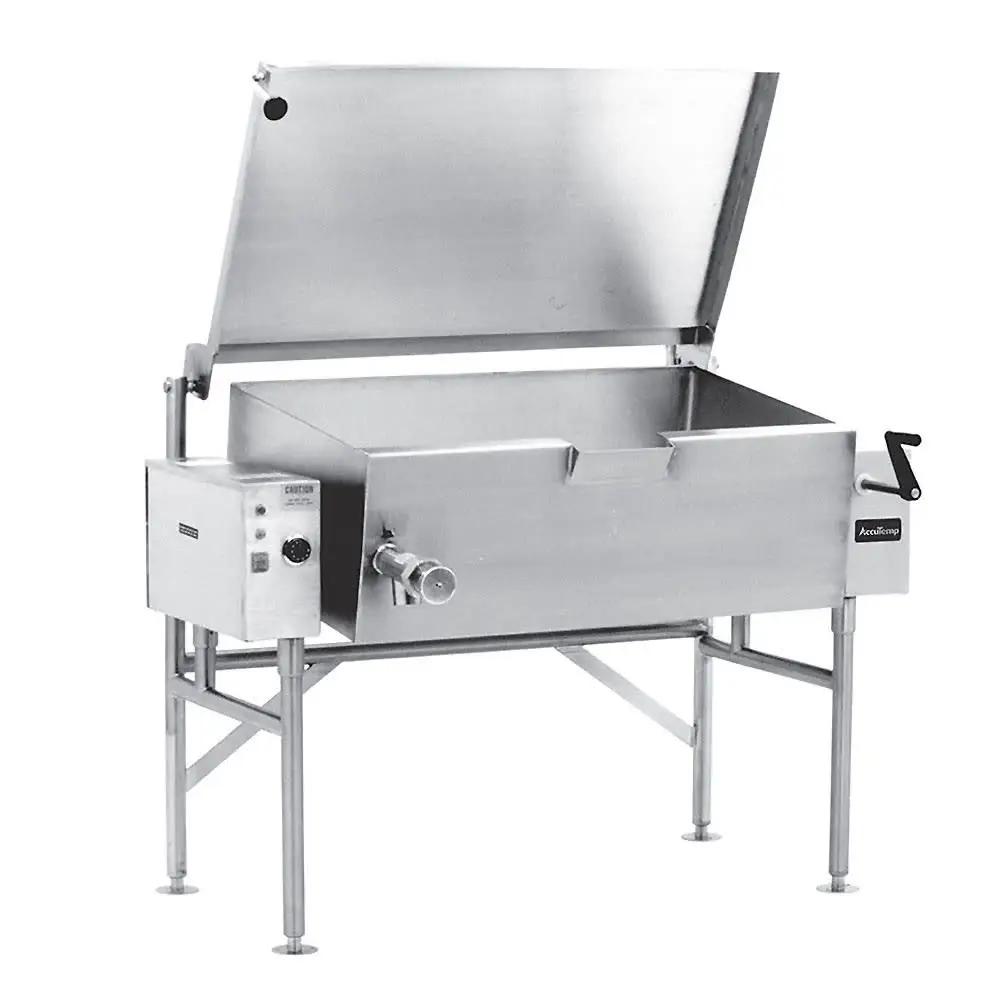

AccuTemp ALTES-30 Tilt Skillet 30 Gal Open Base, 208V, 3 Phase

AccuTemp ALTES-30 Edge Series tilting skillet, 30-gallon capacity, open-base configuration. Electric heating, 208 V / 60 Hz / 3-phase; thermostatically controlled from 175 to 400°F; 11.8 kW total.

Tilts forward more than 90° for straightforward product removal; field-replaceable heating elements. 304 stainless steel construction with clad pan; open 1-5/8 in tubular leg stand; actuator-assisted heavy-duty lid.

Specs

• Manufacturer: AccuTemp
• Model: ALTES-30
• Series: Edge Series
• Base: Open
• Capacity: 30 gallons
• Heat: Electric
• Voltage: 208 V
• Hertz: 60
• Phase: 3
• Product: Tilting Skillets
• Product Type: Cooking Equipment
• Tilt Mechanism: Crank
• Type: Floor Model
• Temperature range: 175–400°F
• Temperature control: Thermostatic
• Heating elements: Field-replaceable
• Construction: 304 stainless steel; clad pan
• Weight: 490 lb
• Dimensions: 46.1 in W × 36.33 in D × 38.75 in H (67.25 in H with lid raised)
• Power: 11.8 kW; 29.6 A

Features

• Tilting mechanism with self-locking worm gear and manual crank
• Tilt angle exceeds 90° for efficient product removal
• Actuator-assisted heavy-duty lid with condensate drip shield and vent
• Open-base design mounted on a 1-5/8 in open tubular leg stand
• Field-replaceable heating elements for easier maintenance
• 304 stainless steel construction; clad pan for corrosion resistance
• Thermostatically controlled temperature (175–400°F)

Compatibility

• Electrical service: 208 V, 60 Hz, 3-phase; 11.8 kW (29.6 A)
• Designed for Edge Series tilting skillets with open-base configuration

Physical

• Material: 304 stainless steel; clad pan
• Base: Open tubular leg stand, 1-5/8 in
• Cover: Heavy-duty actuator-assisted lid with vent and condensate shield
• Dimensions: 46.1 in W × 36.33 in D × 38.75 in H (67.25 in H with lid raised)
• Weight: 490 lb

Certifications

• UL listed
• NSF certified

Warranty

• 1-year parts & labor; Lifetime service & support guarantee
