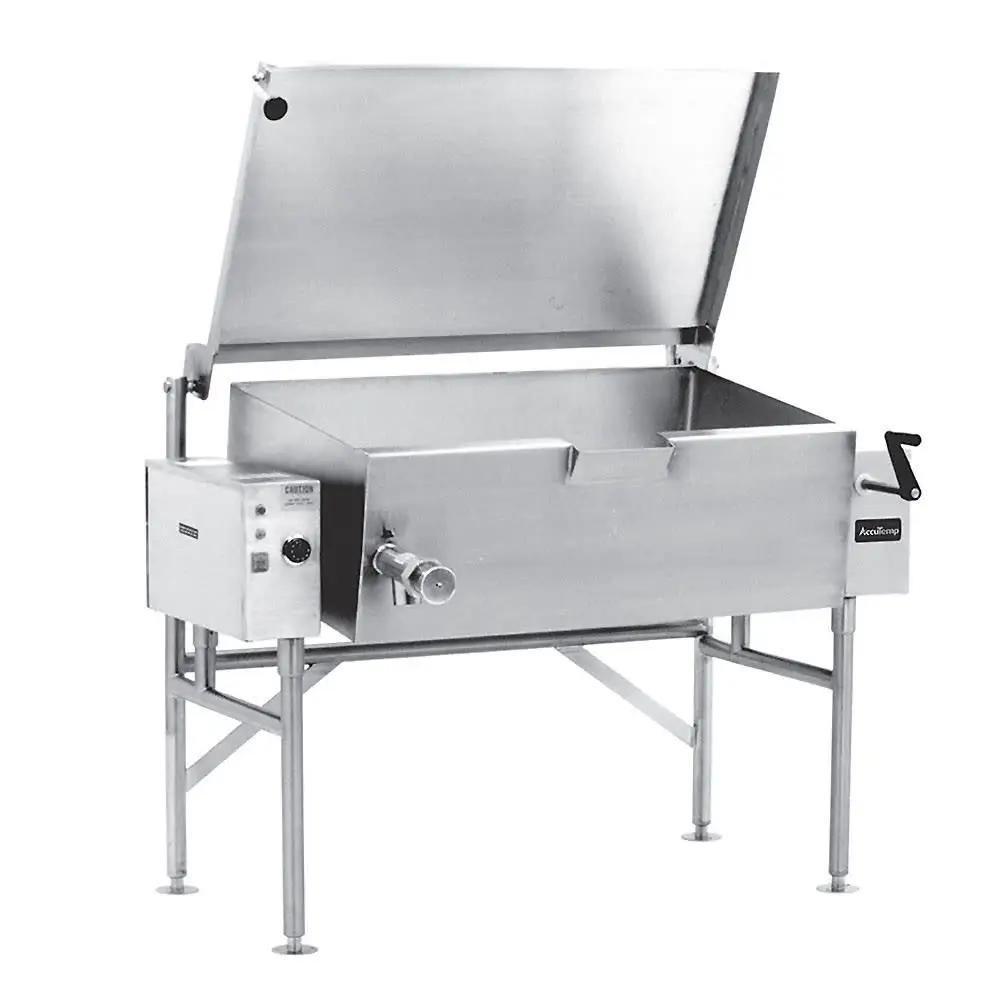

AccuTemp ALTES-30 Tilt Skillet 30 Gal 208V

AccuTemp ALTES-30 Edge Series tilt skillet, open-base 30 gal capacity with manual tilt. 208V, 60 Hz, 1-phase electric heating (11.8 kW) with thermostatic control from 175–400°F; field-replaceable heating elements; 304 stainless steel body with clad pan; heavy-duty actuator-assisted cover with condensate shield; open 1-5/8" tubular leg stand; 490 lb; UL/NSF listed.

Specs

• Manufacturer: AccuTemp
• Series: Edge Series
• Model: ALTES-30
• Base: Open
• Capacity (gallons): 30
• Heat: Electric
• Voltage: 208 V
• Frequency: 60 Hz
• Phase: 1
• Power: 11.8 kW
• Current: 51.3 A
• Tilt mechanism: Crank; self-locking worm gear
• Product Type: Tilting Skillets
• Pan construction: 304 stainless steel; clad pan
• Cover: Heavy-duty actuator-assisted cover with condensate drip shield and vent
• Dimensions (W × D × H): 46 1/10 in × 36 33/100 in × 38 3/4 in
• Dimensions with cover raised: 67 1/4 in
• Weight: 490 lb

Features

• Thermostatic controls with a 175–400°F range
• Manual tilt with self-locking worm gear; tilt angle > 90°
• Field-replaceable heating elements
• Open-base floor model with open 1-5/8" tubular leg stand
• Heavy-duty actuator-assisted cover with condensate shield and vent
• 304 stainless steel construction; clad pan for durability and corrosion resistance

Compatibility

• Electrical supply: 208 V, 60 Hz, 1-phase required
• Power draw: 11.8 kW; current ~51.3 A
• Open-base configuration suitable for standard commercial kitchen layouts and floor stands
• Edge Series tilting skillet designed for high-volume operations with field-serviceable heating elements
• UL and NSF listed for safety and sanitation compliance

Physical

• Pan capacity: 30 gallons
• Pan material: clad 304 stainless steel
• Body material: 304 stainless steel
• Base: Open
• Leg stand: Open 1-5/8" tubular
• Cover: Heavy-duty actuator-assisted with condensate drip shield and vent
• Tilting: Manual tilt via crank (self-locking worm gear)
• Weight: 490 lb
• Dimensions: 46 1/10 in W × 36 33/100 in D × 38 3/4 in H (67 1/4 in H with cover raised)

Certifications

• UL listed
• NSF listed

Warranty

• 1-year parts & labor; lifetime service & support guarantee
