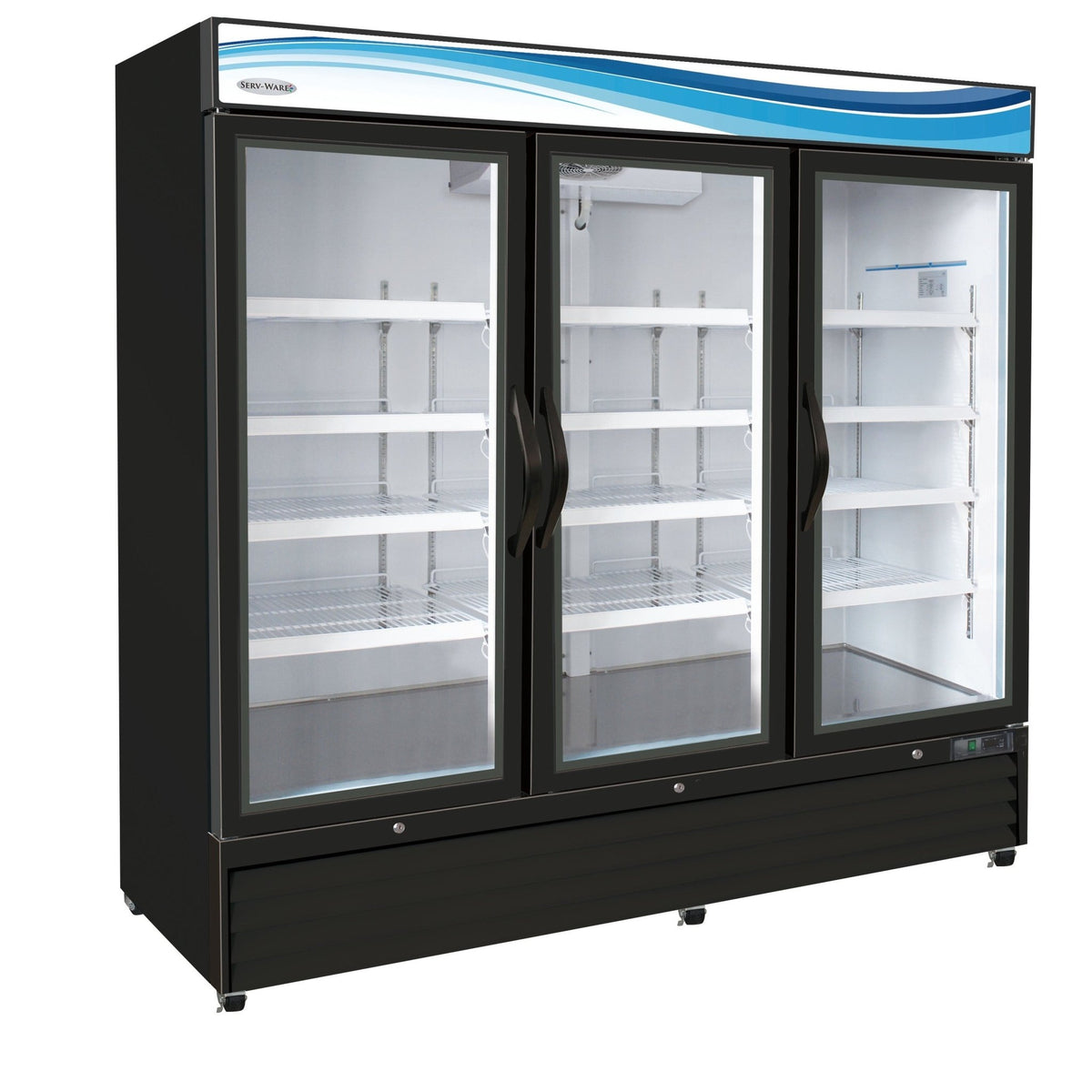

Serv-Ware GF72B-HC 81" Three Glass Door Freezer Merchandiser, 72 Cu. Ft., Black, R290, 220-240V
The Serv-Ware GF72B-HC is the big one: a three glass door freezer merchandiser that turns a full wall of frozen goods into a display. Supermarkets, convenience stores and high-traffic grab-and-go operations use this size to show off ice cream, frozen entrees and ice in one long, well-lit run.
It holds 72 cu. ft. behind three self-closing Low-E double pane glass doors, with four vinyl coated wire shelves per door (12 in total). A bottom-mounted 1-1/4 HP compressor on R290 hydrocarbon refrigerant keeps -10°F to 0°F, and the unit runs on 220–240V, 9 amps, with a NEMA L14-20 plug.
What you will notice in day-to-day use
- Product that sells itself. LED interior lighting and an illuminated top panel draw the eye to what is inside, even from across the store.
- Doors that close behind customers. Self-closing doors help hold temperature when shoppers forget, and the glass stays open past 90° while you restock.
- Less fogging, better efficiency. Low-E double pane glass and foamed-in-place CFC-free insulation help keep the cold in and the view clear.
- Know your temperature. An electronic thermostat with a digital LED display makes it easy to check and log the cabinet temperature.
- Secure after hours. Lockable doors keep stock safe overnight.
Specifications
| Brand | Serv-Ware |
| Model | GF72B-HC |
| Type | Three glass door freezer merchandiser, bottom-mount |
| Storage capacity | 72 cu. ft. |
| Temperature range | -10°F – 0°F |
| Doors | 3 self-closing, lockable, Low-E double pane glass |
| Shelves | 12 (vinyl coated wire), 4 per door |
| Compressor | 1-1/4 HP, bottom mounted |
| Refrigerant | R290 (hydrocarbon), 5.29 oz charge |
| Cooling capacity | 1,186 BTU/h |
| Defrost | Automatic, every 6 hours |
| Controls | Electronic thermostat, digital LED display |
| Electrical | 220-240V, 60 Hz, 1 phase, 9 A, NEMA L14-20 plug |
| Exterior / interior | Black powder-coated steel / white powder-coated steel |
| Floor | Stainless steel |
| Insulation | CFC-free foamed-in-place polyurethane |
| Lighting | LED interior lamp, illuminated top panel |
| Dimensions (W x D x H) | 81" x 31-7/8" x 81-1/2" |
| Shipping weight | 835 lb |
Before it arrives
- Power: plan for a 220–240V twist-lock receptacle to match the NEMA L14-20 plug; have an electrician install it before delivery. A dedicated circuit is good practice for refrigeration.
- Location: for indoor, climate-controlled spaces with good air circulation, away from ovens, fryers and other heat sources.
- Casters: the unit ships with wheels that are not yet installed, so fit them on arrival.
- Delivery: it is 81" wide and 81-1/2" tall and ships at about 835 lb; measure doorways and plan for a liftgate and several people.
Warranty
3 years parts and labor on the entire unit from Serv-Ware (labor valid in the United States, commercial use only), plus a 5-year compressor warranty covering the compressor part only.
Specifications per Serv-Ware data; subject to change by the manufacturer.
